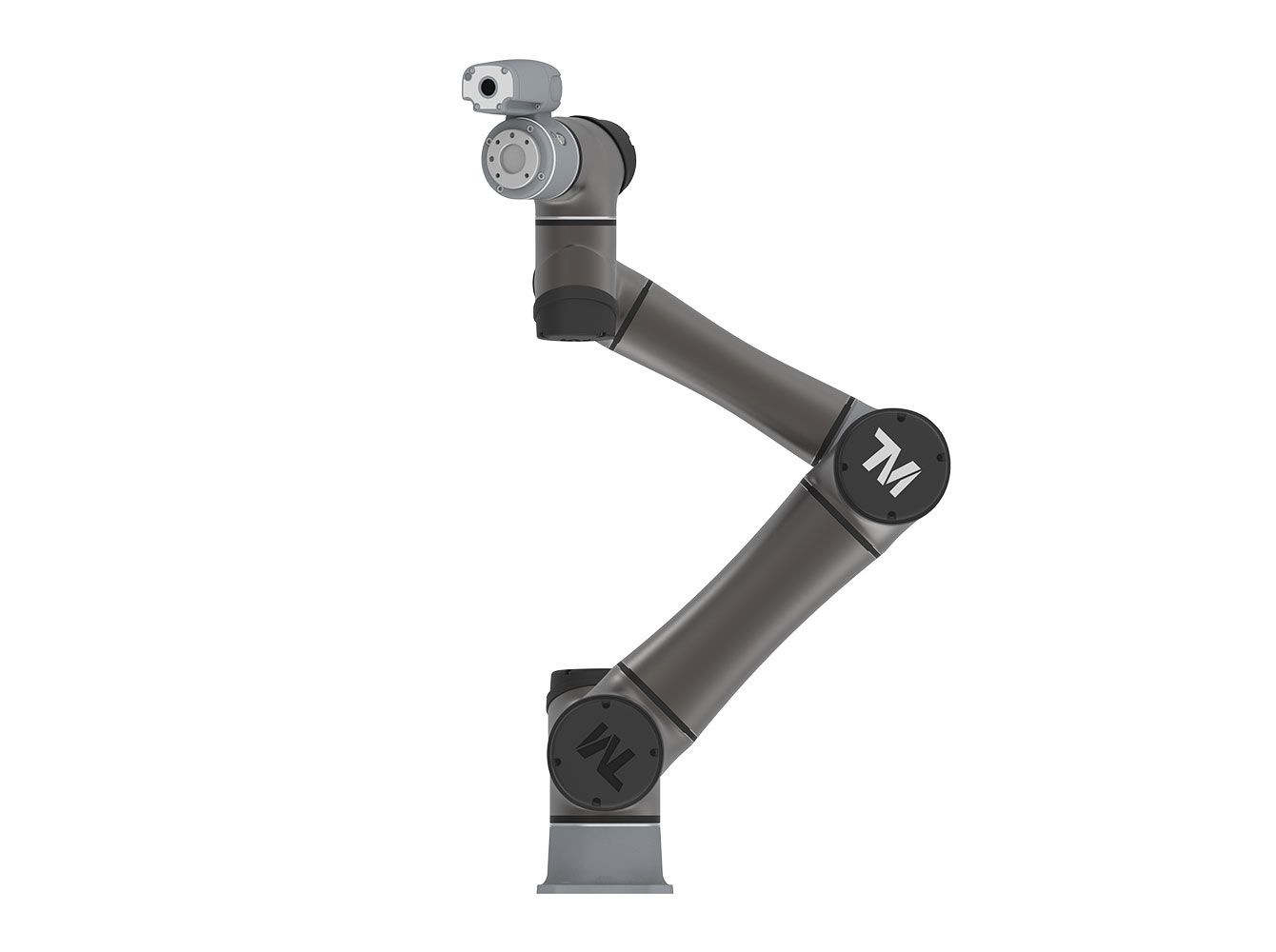

OMRON / Techman TM5S collaborative 6-axis robot
OMRON / Techman TM5S collaborative robot is a 6-axis cobot from the TM AI Cobot S Series. It has a maximum payload of 5 kg and a reach of 900 mm.
The S Series is the newer TM collaborative robot platform, with expanded safety features, improved industrial connectivity and variants for integrated camera, no-camera, mobile/DC and fieldbus configurations depending on the exact ordering code.
These cobots are sold under both Techman Robot and OMRON TM branding depending on market and channel. For CMS use, this record keeps the robot model as the TM model and identifies the manufacturer as OMRON / Techman.
Controller and software: TMflow is the main flowchart-based programming environment. S Series models also support TMScript and TMCraft/developer workflows depending on version and configuration.
Typical applications
- advanced manufacturing
- assembly of parts
- handling of parts
- loading and unloading of parts
- measurement
- education
Technical specifications
| Specification | Value |
|---|---|
| Robot model | TM5S |
| Branding | OMRON TM / Techman Robot |
| Robot family | TM AI Cobot S Series |
| Robot type | collaborative 6-axis robot |
| Controlled axes | 6 |
| Maximum payload | 5 kg |
| Maximum reach | 900 mm |
| Repeatability | ±0.03 mm |
| Average speed | 1.4 m/s |
| Robot arm weight | 23.9 / 23.6 kg with/without camera |
| Controller / software | TMflow / TM Robot control box |
| CMS controller group | TMflow |
| Mounting / installation | Wall, table or ceiling depending on model and risk assessment |
| Protection / cleanroom | IP65 robot arm; IP54 control box; ISO Class 3 cleanroom |
| Vision | Integrated camera available on camera variants; X/no-camera variants also exist |
| Fieldbus / communication | Ethernet, Modbus TCP/RTU; EtherCAT, PROFINET and EtherNet/IP optional depending on model |
| Main applications | Advanced Manufacturing, Assembly of parts, Handling of parts, Loading and unloading of parts, Measurement, Education |
| Engineering note | Validate exact ordering code, integrated camera option, fieldbus option, power supply, safety configuration and regional availability before ordering or integration. |
Source note: Data compiled from current OMRON and Techman public product pages and datasheets. Some model dimensions and ordering-code options vary by market.
